BIYOVENT

Intensive Care Type Mechanical Ventilator Device

High Technology Meets with Safe Production

Biyovent ICU Ventilator makes a difference in the ventilation process with its unique specifications. Biyovent ICU Ventilator, has been carefully thought with every detail of the ventilators and developed with a holistic approach. Prepared for mass production in cooperation with Arçelik, Baykar and Aselsan.

Biyovent
Contact Us
Brochure
Catalog
biyovent icon

Invasive and Non - Invasive Ventilation

It helps healthcare professionals to
reach the information they need and provide the opportunity to choose between Non-Invasive and Invasive Ventilation.

3-02

Integrated Nebulizer



You can apply medication without interrupting the ventilation process with integrated nebulizer.

1.-02

High Flow Oxygen Therapy and N-CPAP

Thanks to Biyovent’s advanced software and hardware, it provides N-CPAP and HFO Therapy methods at the same time.

4-02

Suitable for Pediatric, Adult and Newborn (Optional) Patients

It provides advantages to the patient and the doctor for the most effective treatment.

Biyovent

Convenient Design for New Generation ICU Ventilators

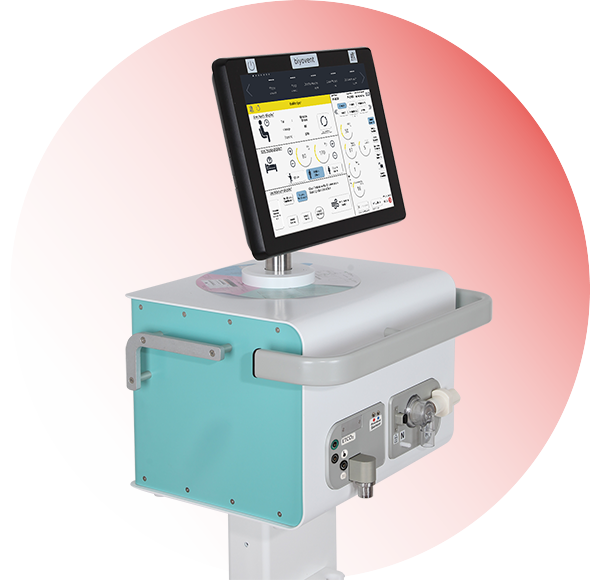

Biyovent ICU Ventilator’s set-up is quick and easy with its three-piece structure. Thanks to its ergonomic design consisting of the foot, support and main body parts connected to the screen, it allows for an easy set-up, which allows its parts to be connected with each other with eight screws, works quickly in a solution-oriented manner, thanks to its simplified set-up system rather than a complex configuration during device set-up.

Offering popular women’s necklaces such as pendants, chokers and chain necklace. Shop for jewelry in a variety of metals and gemstones to suit any occasion

BIYOVENT

Contact Us

Easily Operate

The user-friendly interface allows easy input of patient information and customization of parameters tailored to the patient’s needs. Adjustments can be easily made via the sensitive touchscreen, enabling quick steps for necessary modifications in the patient’s treatment.
SAV Mode
The Biyovent SAV mode allows the ventilator to permit the patient to make an effort to breathe and supports the patient's own respiratory efforts. This strengthens the patient's respiratory muscles and encourages natural breathing. The ventilator determines the necessary pressure and flow required for the patient to breathe, monitors the patient's respiratory effort, and adjusts its settings accordingly.
User Configurable UI
The Biyovent has advanced software features; it has a user-friendly interface designed for ease of use. Patient information can be easily entered via the touchscreen, allowing parameters to be customized according to the patient's needs. The visually supported interface design used for accessing information facilitates ease of learning and application, enabling access to more than 30 parameters on the same screen.
Graphic Guidelines
The Biyovent, with its user-friendly interface, assists in monitoring real-time measurement values for sudden developments related to the patient, displaying them graphically with 3 graphs and 3 loops simultaneously. It also provides a lung diagram with smart respiratory monitoring capability, allowing visualization of the dynamic state of the lungs.
Maintenance
Maintenance, which is crucial for maximizing device performance and extending its lifespan, is performed in three steps on the Biyovent device using visual-guided instructions available on the screen. These visual-guided instructions, including calibration options, make it easier for users to learn and apply maintenance procedures effectively.
"3 Therapy, 1 Device"
Biyovent considers this awareness by offering a customizable structure according to each patient's condition and needs. Users have the option to select the necessary treatment method for the patient through Biyovent. These options include Non-Invasive ventilation, Invasive ventilation, N-CPAP (Continuous Positive Airway Pressure), and HFO (High Frequency Oscillation) therapies. These features enable Biyovent to provide a broad range of applications and adapt to different clinical scenarios.
Previous slide
Next slide

Defining Personalized Treatment

With every detail designated from design to hardware, from software to technology and developed with a holistic approach, it adds value to health with its modern and ergonomic design, user-friendly interface, traditional and innovative operating modes, and adaptable structure to different patient groups.

biyovent-katalog-logo

CATALOG

biyovent-katalog-logo

BROCHURE

biyovent-katalog-logo

DATA SHEET

Comparison Chart

The table below compares mechanical ventilators from various brands with the Biyovent version 3.0. The table is prepared to help you make your decision more easily.

FeaturesBiyoventABC
Method of UseAdult Pediatric | NeonatalAdult Pediatric | NeonatalAdult Pediatric | NeonatalAdult Pediatric | Neonatal
Screen Specifications15" TFT Color
Screen		15" TFT Color Screen12" TFT Color Screen12" TFT Color Screen
Run Time During Power Outage (minutes)120 min85 min30 minX
Tidal Volume20-3000 ml (adult)
2-3000 ml (neonate)		100-2000 ml (adult)
2-50 ml (neonate)		100-3000 ml (adult)
2-100 ml (neonate)		20-2000 ml (adult)
2-2000 ml (neonate)
Inspiratory Pressure or Pressure Control2-100 CmH2O1 - 98 cm H2O 1-95 Mbar5 -60 cmH2O
Inspiration Time0.1 - 10 sn0.1 - 10 sn0.1 - 10 sn0.1 - 12 sn
Oxygen Inlet Pressure2 - 7 Bar2.4 - 6.5 Bar3 - 6 Bar2.8 - 6 Bar
Volume-controlled modes, flow-controlledV-ACV,V-CMV,V-SIMV+PS,V-SIMV(PRVC)+PSA/C VC,A/C PRVC,VSVC-SIMV,VC-AC,VC-CMV,VC-MMVCMV SIMV
Volume-controlled modes, adaptive pressureP-PSV,P-Bilevel,P-CMV,PCV,PRVC,SIMV,P-ACV,ARPV,SAVA/C PC, SIMV,NIVPC-SIMV,PC-BIPAP,PC-AC,PC-CMV,PC-APRV,PC-PSVAPVcmv / (S)CMV+
APVsimv / SIMV+ ASV,INTELLiVENT ASV
Pressure-controlled modesSIMV PC,SIMV PRVC,BiLevel,BiLevel VG,APRV,CPAP,Ncpap SPN-CPAP/PS, SPN-CPAP/VS,
SPN-PPS		PCV+,PSIMV+,DuoPAP,
APRV,SPONT,NIV ,NIV-ST,nCPAP-PS		SIMV(PRVC),PRVC,
CPAP,Ncpap,Bi-Vent APRV,BiLevel
